50HZ Refrigeration Cold Storage Compressor Semi Hermetic Piston D2 - 11.1Y

Brand Name : KUB

Model Number : D2-11.1Y

Certification : CE

Place of Origin : Shanghai, China

MOQ : 16

Price : Consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Year

Delivery Time : 25day

Packaging Details : Pallet packaging

Power supply : 220-240V Δ / 380-420 Y 3Ph 50Hz (265-290V Δ / 440-480V Y 3Ph 60Hz)

Horsepower : 2 hp

Displacement : 11,3 m3

Cooling capacity at ARI conditions, R407C : 10,07 kW

Cooling capacity at LT conditions, R404A : 2,12 kW

Cooling capacity at ARI conditions, R134a : 6,21 kW

Refrigerant : R134a, R22, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R507, R513A

Suction pipe : 7/8"

Discharge pipe : 5/8"

Weight : 45 kg

LRA : 35,9 A

MCC : 7,1 A

Type of oil : FRASCOLD POE 32

Accessories : Control capacity 50%, Crankcase heater 50W (SPFR0013), Head Fan 230V 250mm (SPFR0007)

Application : MHBP

Technology : Fixed speed

Previous version : D2-11Y

Lubrication mode : Without oil pump

High pressure design : 30 bar

Motor protection type : INT69

Type of motor cooling : Suction gas

Protection type : IP56

Speed : 1450 rpm

Contact Now

Compressor semi-hermetic piston D2-11.1Y 220-240V 380-420 V 50HZ Small refrigeration cold storage compressor

	Compressor					Vales position						Vales				Ner Weight
	Length	Width	Hoi- ght	Baso mounting		Suction			Discharge			Suction		Discharge
	A	B	C	D	E	F	G	H	L	M	N	φ		φ
	[MM]	[MM]	[MM]	[MM]	[MM]	[MM]	[MM]	[MM]	[MM]	[MM]	[MM]	[inch]	[MM]	[inch]	[MM]	KG
D2-11.1Y	369	242	294	234	194	165	221	42	94	192	13	7/8"	22,2	5/8"	15,8	45
D2-13.1Y"	369	242	294	234	194	165	221	42	94	192	13	7/8”	22,2	5/8"	15,8	45
D3-13.1Y	374	242	317	234	194	165	225	53	94	192	13	1-1/8”	28,6	5/8"	15,8	49
D2-15.1Y	369	242	294	234	194	165	221	42	94	192	13	7/8"	22,2	5/8”	15,8	45
D3-15.1	374	242	317	234	194	165	225	53	94	192	13	1-1/8”	28,6	5/8"	15,8	49
D3-16.1Y	374	242	317	234	194	165	225	53	94	192	13	1-1/8”	28,6	5/8”	15,8	49
D4-16.1Y	401	242	317	234	194	165	225	53	94	192	5	1-1/8"	28,6	3/4”	19,0	55
D3-18.1Y	374	242	317	234	194	165	225	53	94	192	13	1-1/8”	28,6	5/8"	15,8	55
D4-18.1Y	401	242	317	234	194	165	225	53	94	192	5	1-1/8”	28,6	3/4”	19,0	55
D3-19.1Y	374	242	317	234	194	165	225	53	94	192	13	1-1/8”	28,6	5/8”	15,8	49
D4-19.1Y	401	242	317	234	194	165	225	53	94	192	5	1-1/8”	28,6	3/4”	19,0	55

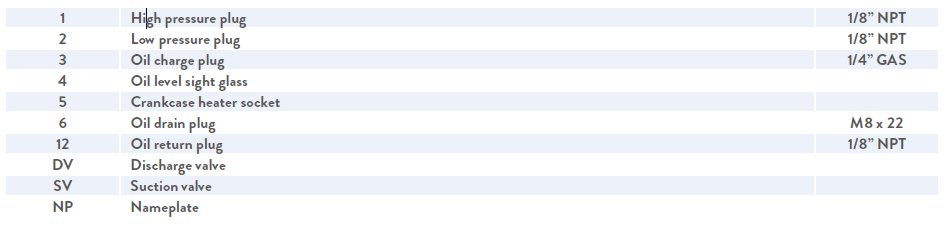

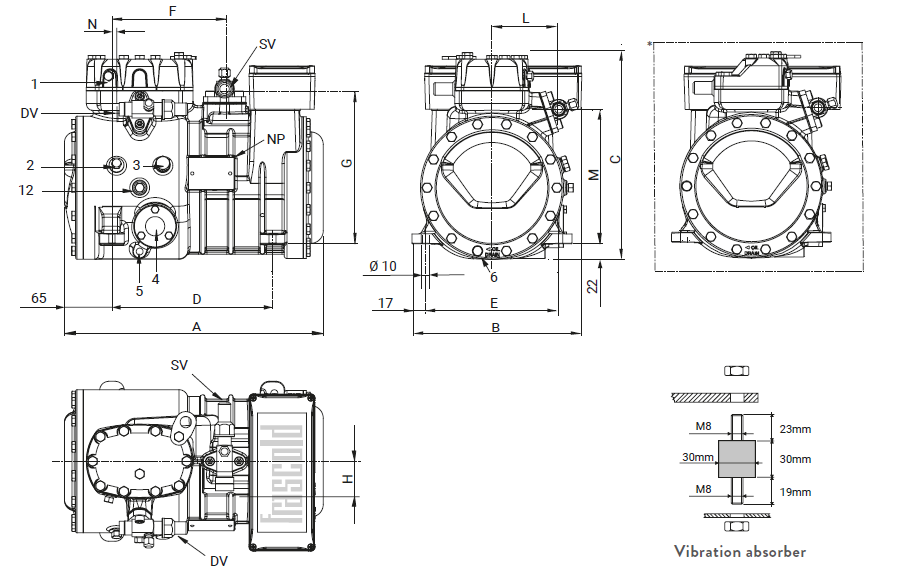

Dimensional drawing
