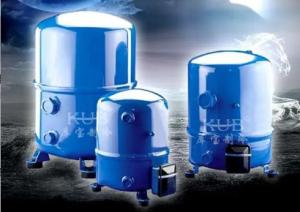

MT36 3hp mt & mtz maneurop compressors
French Maneurop MTZ series, produced in France, is a high-quality refrigeration compressor designed for various applications. It is characterized by a wide range of operating conditions, ensuring long service life with high-quality components and precision processing. The compressor design utilizes suction cooling to ensure efficient motor operation, and the internal protection, high-efficiency circular valve design, and high-torque motor provide reliable performance. The MTZ series, including MTZ36 is available in 3 hp, while MTZ18 -160 ranges from 1.8 hp to13.3HP
| MODEL | GAS | POWER |
| MT36 | R22 | 3HP |
Performance data table(R22)
| type | TE | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
| | TC | P.F. | P.A. | P.F. | P.A. | P.F. | P.A. | P.F. | P.A. | P.F. | P.A. | P.F. | P.A. | P.F. | P.A. | P.F. | P.A. | P.F. | P.A. |
| MTZ36 | 30 | 2297 | 1.47 | 3172 | 1.69 | 4283 | 1.88 | 5518 | 2.06 | 7036 | 2.22 | 8812 | 2.35 | 10869 | 2.45 | 13228 | 2.51 | 15913 | 2.54 |
| | 40 | 1772 | 1.5 | 2547 | 1.76 | 3478 | 2.01 | 4587 | 2.25 | 5898 | 2.47 | 7432 | 2.55 | 9214 | 2.83 | 11263 | 2.97 | 13605 | 3.08 |
| | 50 | 1239 | 1.48 | 1913 | 7.19 | 2707 | 2.10 | 3643 | 2.39 | 4745 | 2.68 | 6036 | 2.94 | 7540 | 3.19 | 9278 | 3.41 | 11275 | 3.06 |
| | 60 | - | - | 1265 | 1.75 | 1926 | 2.12 | 2692 | 2.48 | 3589 | 2.84 | 4641 | 3.18 | 5872 | 3.51 | 7306 | 3.81 | 8966 | 4.09 |
The MTZ series compressors are designed to offer reliable and efficient performance in a wide range of refrigeration and air conditioning applications. Some of the key features and applications of the MTZ series compressors include:
1.Wide range of capacities: The MTZ series offers a variety of capacities to meet the needs of different applications, ranging from 51.8hp to 13.3hp.
2.Efficient motor operation: The compressor design utilizes suction cooling to ensure efficient motor operation, resulting in better performance and longer service life.
3. Internal protection: The MTZ series compressors are equipped with internal protection mechanisms to prevent damage caused by overload or overheating, ensuring reliable operation.
4. High-efficiency circular valve design: This design feature allows for better control of refrigerant flow, resulting in higher efficiency and better performance.
5. High-torque motor: The high-torque motor provides sufficient power to drive the compressor, ensuring reliable performance even under heavy loads.
6.The MTZ series compressors are commonly used in various refrigeration and air conditioning systems, such as supermarket refrigeration units, cold storage warehouses, industrial chillers, and commercial air conditioning systems. Their high-quality components, precision processing, and reliable performance make them an excellent choice for a wide range of applications.
